• 500 bar test pressure on cylinders
• Optimum Cycle Time
• High Manganese InterchangeableTeeth
• Four Sided Shearers
• Stress Relieved Main Bodies
• Anti-Shock Protected Hydromotors
• Two Stage Rolling Elements in Slewing Bearing
• Double Pinion
• Infinite Rotation
• Carbon Free Manufacturing
• 7/24 Service

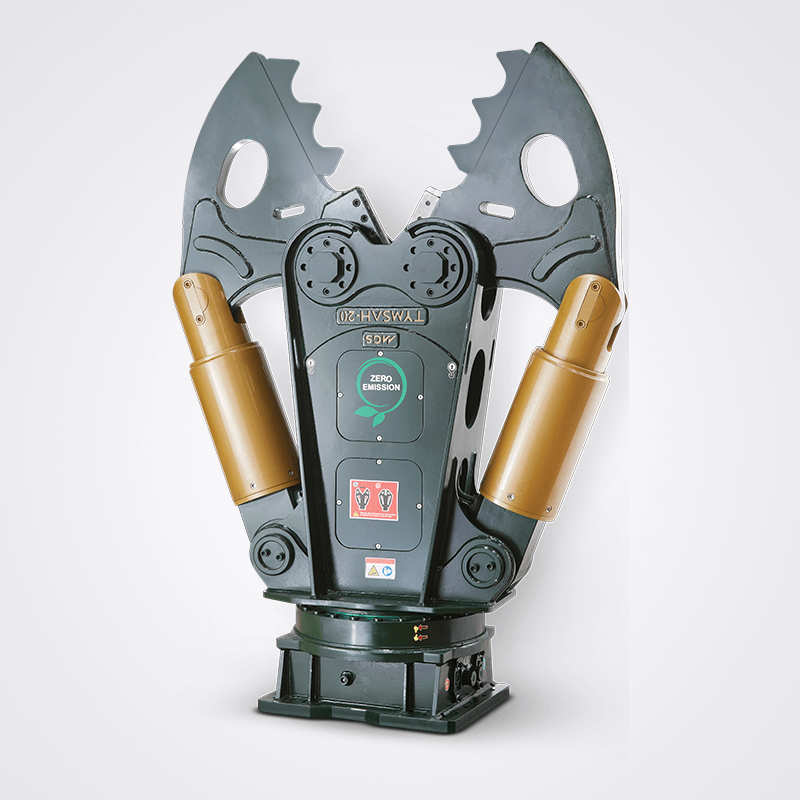

| TYMSAH - 20HA | |
| Information | |
| Class of machine | 20 - 40 ton |
| Weight | 2.150 kg |
| Force at position F1 | 105 ton |
| Force at position F2 | 135 ton |
| Force at position F3 | 190 ton |
| Force at position F4 | 560 ton |
| Hydraulic | |
| Max. operation pressure cylinder | 350 bar |
| Oil volume cylinder | 150-200 L/min |
| Max. operation pressure motor | 170 bar |
| Oil volume motor | 40 L/min |

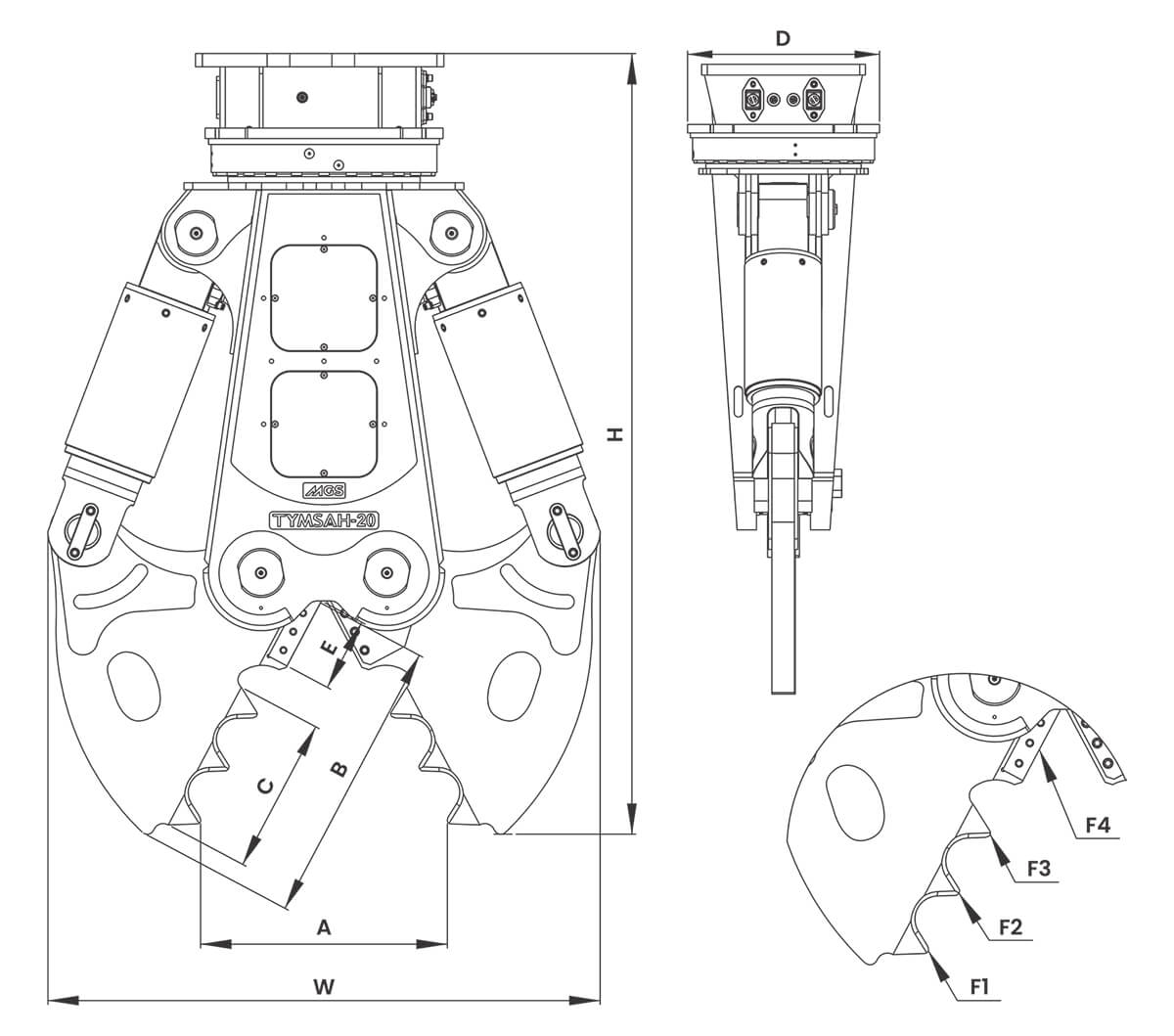

| Dimensions | |
| A | 710 mm |
| W | 1.577 mm |
| B | 764 mm |
| E | 210 mm |
| H | 2.230 mm |
| D | 680 mm |
| C | 445 mm |
